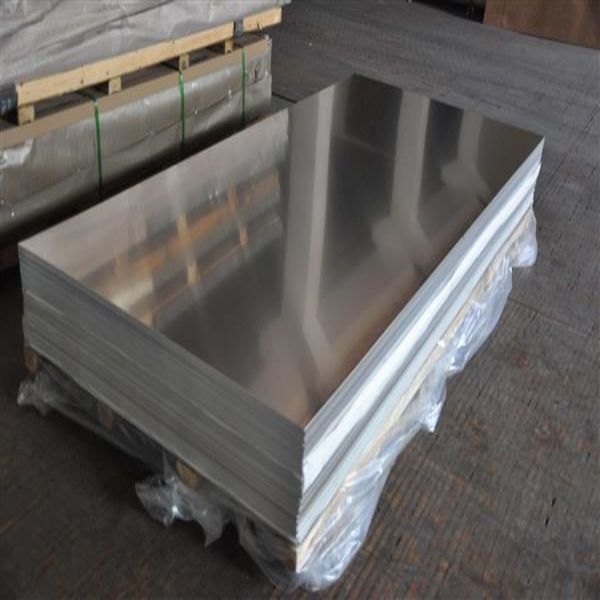

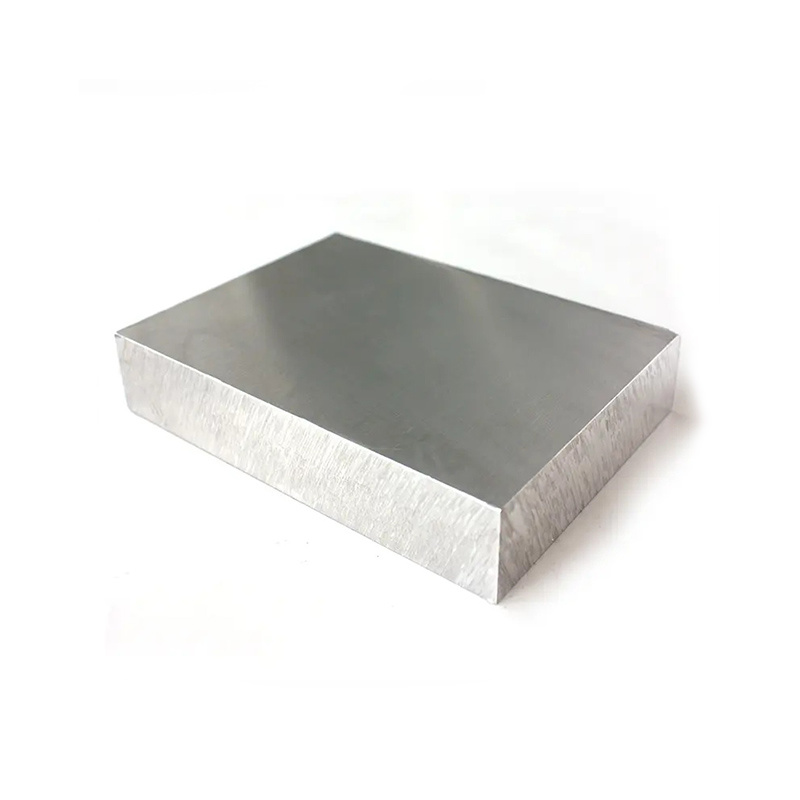

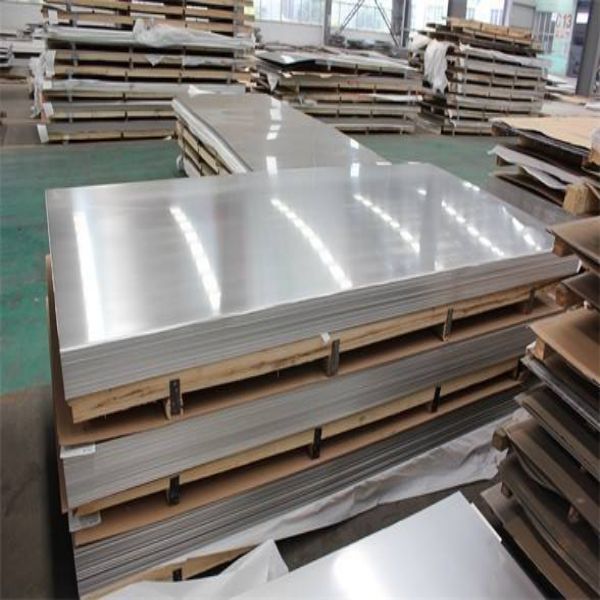

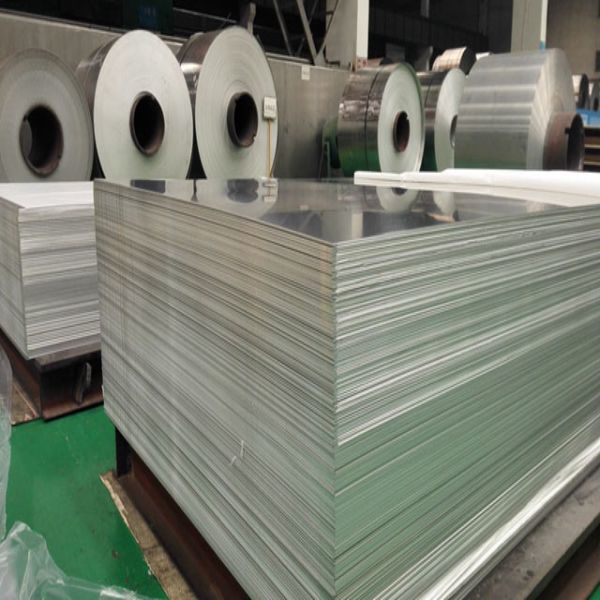

5005 Aluminum Plate

5005 aluminum is a multifunctional alloy with a wide range of properties and uses. It has excellent corrosion resistance, excellent weldability, good formability and machinability, and medium strength. Due to its versatility, this alloy is used in many industries and applications-from automotive components to cookware to electrical enclosures.

Categories Aluminum, Aluminum Plate

[email protected]

Email:

+86 15106880537

Whatsapp:

PRODUCT DETAILS

5005 Aluminum Plate Description

Product Parameters

Width	20-3000mm or Customized	Thickness	0.1-120mm or Customized
Length	100-12000mm or Customized	Certificate	ISO, SGS, BV
Standard	JIS, AISI, ASTM, GB, DIN, EN, etc.
Brand	1000 Series: 1050, 1060, 1070, 1100, 1200, 1235, etc. 3000 Series: 3003, 3004, 3005, 3104, 3105, 3A21, etc. 5000 Series: 5005, 5052, 5083, 5086, 5154, 5182, 5251, 5754, 5A05, etc. 6000 Series: 6061, 6063, 6082, 6A02, etc. 7000 Series: 7050, 7475, 7075, etc. 8000 Series: 8A06, 8011, 8090, etc.
Surface	Coating, Embossing, Drawing, Polishing, Anodizing, etc.
OEM Service	Punching, Cutting Special Size, Making Flat Surface, Surface Treatment, etc.
Delivery Time	Received 30%, After deposit 7-15 working day
Application	Construction, Shipbuilding, Decoration, Industry, Manufacturing, Machinery, Hardware And Other Fields, etc.
Sample	Free Offers Sample
Packaging	Strapping, plastic bag, film, wooden pallet Standard seaworthy export packing or according to customer requirement

Chemical Composition

Alloy	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Others: Each	Others: Total	Al: Min.
1050	0.25	0.40	0.05	0.05	0.05	–	0.05	0.03	0.03	–	99.50
1060	0.25	0.35	0.05	0.03	0.03	–	0.05	0.03	0.03	–	99.60
1070	0.20	0.25	0.04	0.03	0.03	–	0.04	0.03	0.05	–	99.70
1100	0.95 Si Fee		0.05~0.20	0.05	–	–	0.1	–	0.05	0.15	99.0
2014	0.5~1.2	0.7	3.9~5.0	0.4~1.2	0.2~0.8	0.10	0.25	0.15	0.05	0.15	Margin
2017	0.2~0.8	0.7	3.5~4.5	0.4~1.0	0.4~0.8	0.10	0.25	0.15	0.05	0.15	91.5 – 95.5
2024	0.50	0.50	3.8~4.9	0.3~0.9	1.2~1.8	0.10	0.25	0.15	0.05	0.15	Margin
3003	0.60	0.70	0.05~0.20	1.0~1.5	–	–	0.10	–	0.05	0.15	Margin
3A21	0.60	0.70	0.20	1.0-1.6	0.05	–	0.15	0.1-0.2	–	–	Margin
3004	0.30	0.70	0.25	1.0~1.5	0.8~1.3	–	0.25	–	0.05	0.15	Margin
3005	0.60	0.70	0.30	1.0~1.5	0.2~0.6	0.10	0.25	0.10	0.05	0.15	Margin
3105	0.60	0.70	0.30	0.3~0.8	0.2~0.8	0.20	0.40	0.10	0.05	0.15	Margin
5005	0.30	0.70	0.20	0.20	0.5~1.1	0.1	0.25	–	0.05	0.15	Margin
5052	0.25	0.40	0.10	0.10	2.2~2.8	0.15~0.35	0.10	–	0.05	0.15	Margin
5754	0.40	0.40	0.10	0.50	2.6~3.6	0.30	0.20	0.15	0.05	0.15	Margin
5A05	0.50	0.50	0.10	0.3-0.6	4.8-5.5	–	0.20	–	0.05	0.05	Margin
5083	0.40	0.40	0.10	0.4~1.0	4.0~4.9	0.05~0.25	0.25	0.15	0.05	0.15	Margin
6061	0.40~0.8	0.70	0.15~0.4	0.15	0.8~1.2	0.04~0.35	0.25	0.15	0.05	0.15	Margin
6082	0.70~1.3	0.50	0.10	0.4~1.0	0.6~1.2	0.25	0.20	0.10	0.05	0.15	Margin
7075	0.40	0.50	1.2~2.0	0.30	2.1~2.9	0.18~0.28	5.1~6.1	0.20	0.05	0.15	Margin

Mechanical Properties

Tensile Strength (MPa)	Test Stress (MPa)	Hardness HV	Elongation Rate （%）
160	145	46	11

Physical Performance

Density	Melting Point	Modulus of Elasticity	Thermal Conductivity	Resistance Rate
2.7 Kg/m³	655 °C	69.5 GPa	201W/m.K	0.033×10 ^-6 Ω.m

Annealing State

Brand	Annealing State
1xxx: 1050, 1050A, 1060, 1100	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
3xxx: 3003, 3004, 3005, 3105	O, H12, H14, H16, H18, H22, H24, H26, H28, H111
5xxx: 5005, 5052, 5754, 5083, 5086, 5182, 5049, 5251, 5454	O, H22, H24, H26, H28, H32, H34, H36, H38, H111
6xxx: 6061, 6082	T4, T6, T451, T651
2xxx: 2024	T3, T351, T4
7xxx: 7075	T6, T651

Scope of Application

Aluminum Uses And Application Area
Food Packaging	Beverage can ends, cans, bottle caps, etc.
Building	Curtain walls, cladding, suspended ceilings, thermal insulation, venetian blinds, etc.
Transportation	Auto parts, passenger car bodies, aviation ships and air cargo containers.
Electronic Equipment	Electrical appliances, communication equipment,PCPlate drilling guide, lighting and heat dissipation materials, etc.
Consumer Goods	Umbrellas, cooking utensils, sports equipment, etc
Other	Military, color coated aluminum plate, etc.

PACKING AND DELIVERY

Alloy Series	Chinese standard	American standard	European standard
1xxx series	1050	-	-
	1050A	-	EN AW-1050A
	1060	1060	-
	1100	1100	-
2xxx series	2024	2024	EN AW-2024
3xxx series	3003	3003	EN AW-3003
	3004	3004	EN AW-3004
	3005	3005	EN AW-3005
	3105	3105	EN AW-3105
5xxx series	5005	5005	EN AW-5005
	5052	5052	EN AW-5052
	5754	5754	EN AW-5754
	5083	5083	EN AW-5083
	5086	5086	EN AW-5086
	5182	-	EN AW-5182
	5049	-	EN AW-5049
	5251	-	EN AW-5251
6xxx series	6061	6061	EN AW-6061
6xxx series	6082	-	EN AW-6082
7xxx series	7075	7075	EN AW-7075
