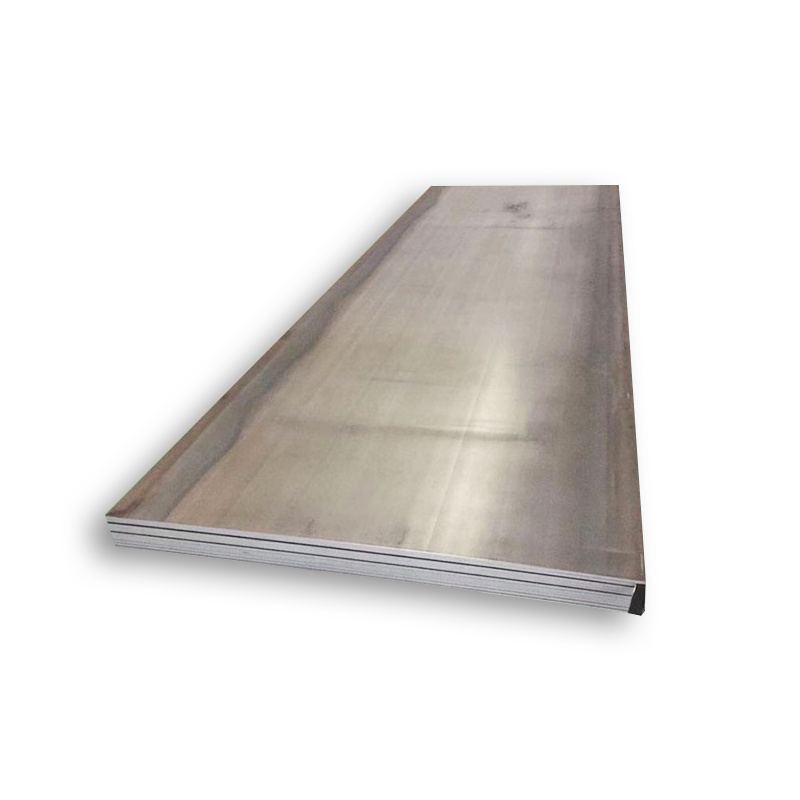

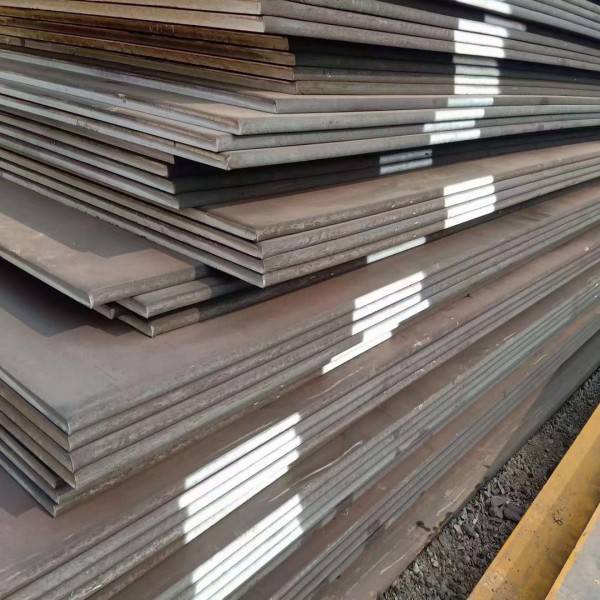

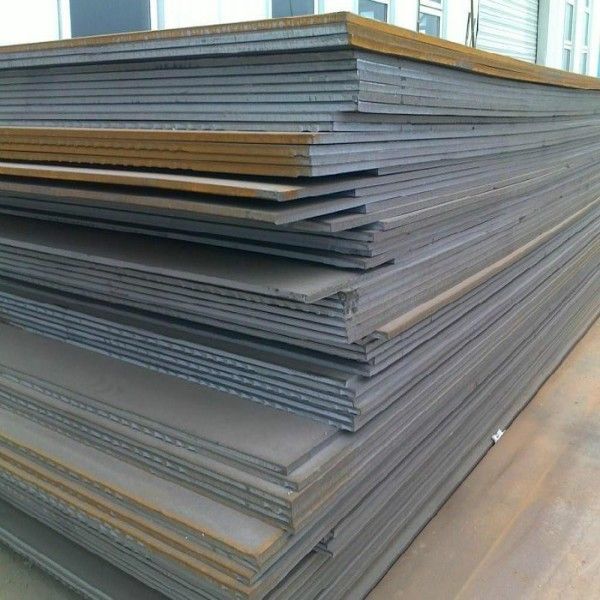

A387 Pressure Vessel Steel Plate
ASTM A387 Boiler vessel plates are chrome-molybdenum alloy steel plates suitable for welding boilers and high temperature pressure vessels. ASTM A387 boiler container plate is divided into grade 5, grade 9, grade 11, grade 12, grade 22, grade 91 and other grades according to the alloy elements contained. Except for grades 21L, 22L, 91 and 911, each grade of ASTM A387 boiler vessel plate has two tensile strength categories according to its heat treatment: Class 1 and Class 2.
Whatsapp:
+86 15106880537
PRODUCT DETAILS
A387 Pressure Vessel Steel Plate Description
ASTM A387 Boiler vessel plates are chrome-molybdenum alloy steel plates suitable for welding boilers and high temperature pressure vessels. ASTM A387 boiler container plate is divided into grade 5, grade 9, grade 11, grade 12, grade 22, grade 91 and other grades according to the alloy elements contained. Except for grades 21L, 22L, 91 and 911, each grade of ASTM A387 boiler vessel plate has two tensile strength categories according to its heat treatment: Class 1 and Class 2.
Product Parameters
| Product Name | A387 Pressure Vessel Steel Plate |
| Production Process | Hot Rolling, Cold Rolling |
| Material Standards | AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc. |
| Width | 100mm-3000mm |
| Length | 1m-12m, or Customized Size |
| Thickness | 0.1mm-400mm |
| Delivery Conditions | Rolling, Annealing, Quenching, Tempered or Standard |
| Surface Process | Ordinary, Wire Drawing, Laminated Film |
Chemical Composition
| A387 | UNS | C | Mn | P | S | Si | Cr | Mo |
| Level 5 | S50200 | ≤ 0.15 | 0.25-0.66 | 0.025 | 0.025 | ≤ 0.55 | 3.90-6.10 | 0.40-0.70 |
| Level 9 | K90941 | ≤ 0.15 | 0.25-0.66 | 0.025 | 0.025 | ≤ 1.05 | 7.90-10.10 | 0.85-1.15 |
| Level 11 | K11789 | 0.04-0.17 | 0.35-0.73 | 0.025 | 0.025 | 0.44-0.86 | 0.94-1.56 | 0.40-0.70 |
| Level 12 | K11757 | 0.04-0.17 | 0.35-0.73 | 0.025 | 0.025 | 0.13-0.45 | 0.74-1.21 | 0.40-0.65 |
| Level 22 | K21590 | 0.04-0.15 | 0.25-0.66 | 0.025 | 0.025 | ≤ 0.50 | 1.88-2.62 | 0.85-1.15 |
| Class 22L | K21590 | ≤ 0.12 | 0.25-0.66 | 0.025 | 0.025 | ≤ 0.50 | 1.88-2.62 | 0.85-1.15 |
| Class 91 | K90901 | 0.06-0.15 | 0.25-0.66 | 0.025 | 0.012 | 0.18-0.56 | 7.90-9.60 | 0.80-1.10 |
Mechanical Properties
| A387 | Category | Tensile Strength Mpa | Yield Strength Mpa | Elongation Gauge length 2in.[50mm]% |
| Level 5 | Section Category 1 | 415-585 | 205 | 18 |
| Section Category 2 | 515-690 | 310 | 18 | |
| Level 9 | Section Category 1 | 415-585 | 205 | 18 |
| Section Category 2 | 515-690 | 310 | 18 | |
| Level 11 | Section Category 1 | 415-585 | 240 | 22 |
| Section Category 2 | 485-620 | 310 | 22 | |
| Level 12 | Section Category 1 | 380-550 | 230 | 22 |
| Section Category 2 | 450-585 | 275 | 22 | |
| Level 22 | Section Category 1 | 415-585 | 205 | 18 |
| Section Category 2 | 515-690 | 310 | 18 |
Physical Performance
| Physical Performance | Metric | Imperial |
| Density | 7.7-8.03 g/cm3 | 7.7-8.03 g/cm3 |
Scope of Application
The molybdenum composition in ASTM A387 boiler vessel plate can improve its tensile strength at high temperature, and make it have higher oxidation and corrosion resistance by increasing the lattice strain. ASTM A387 Boiler Container Plates are ideal for use in heat-resistant pressure vessels and sour gas environments.
Equivalent Material
| American StandardASTM | European StandardASME | German StandardEN 10028 | English standardDIN | Legal standardBS | Russian standardAFNOR 36206 |
| A387 5 | SA387 5 | X12CrMo5 | – | – | – |
| A387 9 | SA387 9 | – | – | – | – |
| A387 11 | SA387 11 | 13CrMoSi5-5 | – | 621B | – |
| A387 12 | SA387 12 | 13CrMo4-5 | 13CrMo44 | 620B | 15CD2.05 |
| A387 22 | SA387 22 | 10/11CrMo9-10 | 10CrMo9-10 | 622-515B | 12CD9-10 |
| A387 91 | SA387 91 | 10CrMoVNb9-1 | – | — | – |
PACKING AND DELIVERY
Packing and delivery
The company mainly deals in seamless steel pipes, welded steel pipes, galvanized steel coils, round steel, steel plates, color-coated plates, stainless steel plates, aluminum coils, angle steels, H-shaped steels, special-shaped steel bars, etc. We provide one-stop service from raw materials to finished products, with complete product specifications. We have 15 years of production experience and after years of development, we have a strong production capacity with a monthly output of 50,000 tons.
FACTORY APPEARANCE
We are one-stop supplier from raw materials to finished products, our products are available in a variety of specifications and with a history of 15 years production experience, after years of development, We have a strong production capacity, with a monthly output of 50,000 tons, ranking among the top five in the industry.
APPLICATION FIELD
Adhering to the business principle of mutual benefits, Hongzheng has had a reliable reputation among our customers because of our professional services, quality products and competitive prices.
FAQ
What are the certifications for your products?
We have ISO 9001, MTC, and third-party inspections such as SGS, BV, etc.
Do you provide custom made Products service?
Yes, if you have your own design, we can produce according to your specifications and drawings.
What is your terms of payment?
Payment ≤ 1000 USD: 100% in advance. Payment ≥ 1000 USD: 30% T/T in advance, balance before shipment or based on BL copy or LC at sight.
What about product prices information?
Prices vary according to periodic price changes of raw materials.
What ports of shipment are there?
Normally, we ship from Shanghai, Tianjin, Qingdao, and Ningbo. You can specify other ports if needed.
It's my first time to import steel products. Can you help me?
Sure, we have agents to arrange shipment and can assist you through the process.
