DIN 17155 Pressure Vessel Steel Plate (3)

DIN 17155 Pressure Vessel Steel Plate (1)

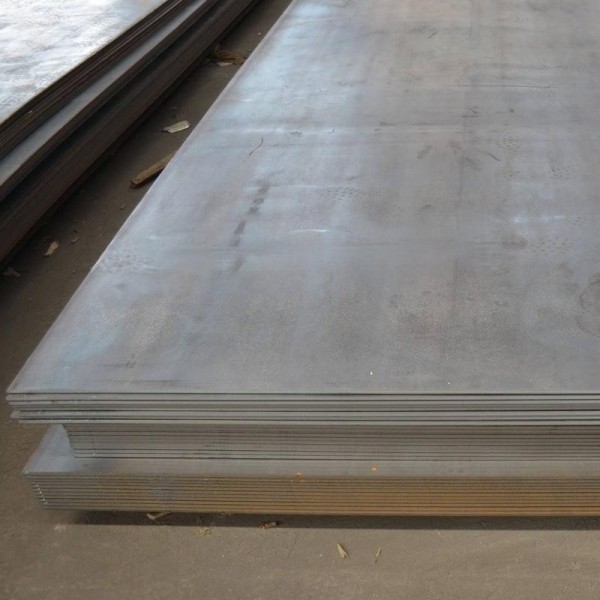

DIN 17155 Pressure Vessel Steel Plate

DIN 17155 pressure vessel steel plate is boiler and pressure vessel steel. In addition to boilers and pressure vessels, DIN 17155 pressure vessel steel is also used to manufacture high-temperature liquid transportation pipelines.

Categories Carbon Steel, Carbon Steel Plate

Email:

[email protected]

Whatsapp:

+86 15106880537

PRODUCT DETAILS

DIN 17155 Pressure Vessel Steel Plate Description

Product Parameters

Product Name	DIN 17155 Pressure Vessel Steel Plate
Production Process	Hot Rolling, Cold Rolling
Material Standards	AISI, ASTM, ASME, DIN, BS, EN, ISO, JIS, GOST, SAE, etc.
Width	100mm-3000mm
Length	1m-12m, or Customized Size
Thickness	0.1mm-400mm
Delivery Conditions	Rolling, Annealing, Quenching, Tempered or Standard
Surface Process	Ordinary, Wire Drawing, Laminated Film

Chemical Composition

DIN 17155	C	Si	Mn	P	S	Al	Cr	Cu	Ni	Mo
15Mo3	0.12-0.20	0.10-0.35	0.40-0.90	0.035	0.03		0.25	0.3	0.3	0.25-0.35
13CrMo44	0.08-0.18	0.10-0.35	0.40-0.10	0.035	0.03		0.70-1.10	0.3		0.4-0.6
17Mn4	0.14-0.20	0.4	0.90-1.40	0.035	0.03	0.02	0.25	0.3	0.3	0.1
10CrMo9-10	0.06-0.15	0.5	0.40-0.70	0.035	0.03		2.00-2.50	0.3		0.9-1.0
19Mn6	0.2	0.5	0.90-1.70	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HI	0.16	0.35	0.40/1.20	0.03	0.025	0.02	0.3	0.3	0.3	0.08
HII	0.2	0.35	0.50-1.30	0.035	0.03	0.02	0.25	0.3	0.3	0.1

Scope of Application

DIN 17155 pressure vessel steel plates are widely used in gas, petrochemical and other industries, especially in the manufacture of boilers, medium and high temperature heat-resistant pressure vessels, heat exchangers, spherical tanks, separators, nuclear reactor vessels, oil and gas tanks, liquid oil storage tanks, hydraulic supports, etc.

Equivalent Material

DIN 17155	Material No.	EN 10028-2	UNI 5869	BS 1501	A 36087	ASTM	JIS G3115
HI	1.0345	P235GH	Fe 360 – 1KW	161 Gr. 360 / 164 Gr. 360	A 37 RCI	A 285 Gr. C-A 414 Gr. C/ A 516 Gr. 55	SPV 24
HII	1.0425	P265GH	Fe 410 – 1KW	161 Gr. 400 / 164 Gr. 400 / 224 Gr. 400	A 42 RCI	A 414 Gr. E / A 516 Gr. 60
17Mn4	1.0481	P295GH	Fe 460 – 1KW	224 Gr. 490	A 47 RCI	A 414 Gr. F / A 516 Gr. 65	SPV 32
19Mn6	1.0473	P355GH	Fe 510 – 1KW		A 52 RCI	A 414 Gr. G	SPV 36
15Mo3	1.5415	16Mo3	15 Mo 3	1503 – 243 B	16Mo3	A 204 Gr. B
13CrMo44	1.7335	13CrMo4-5	14 CrMo 4.5	620 Gr. 27	14 CrMo 4.5	A 387 Gr. 12
10CrMo910	1.7380	10CrMo9-10		622 Gr. 31		A 387 Gr. 22
